Thule EasyFold XT 3 934 - 3 bike carrier

Tow bar cycle carrier for road bikes, e bikes, gravel and mountain bikes

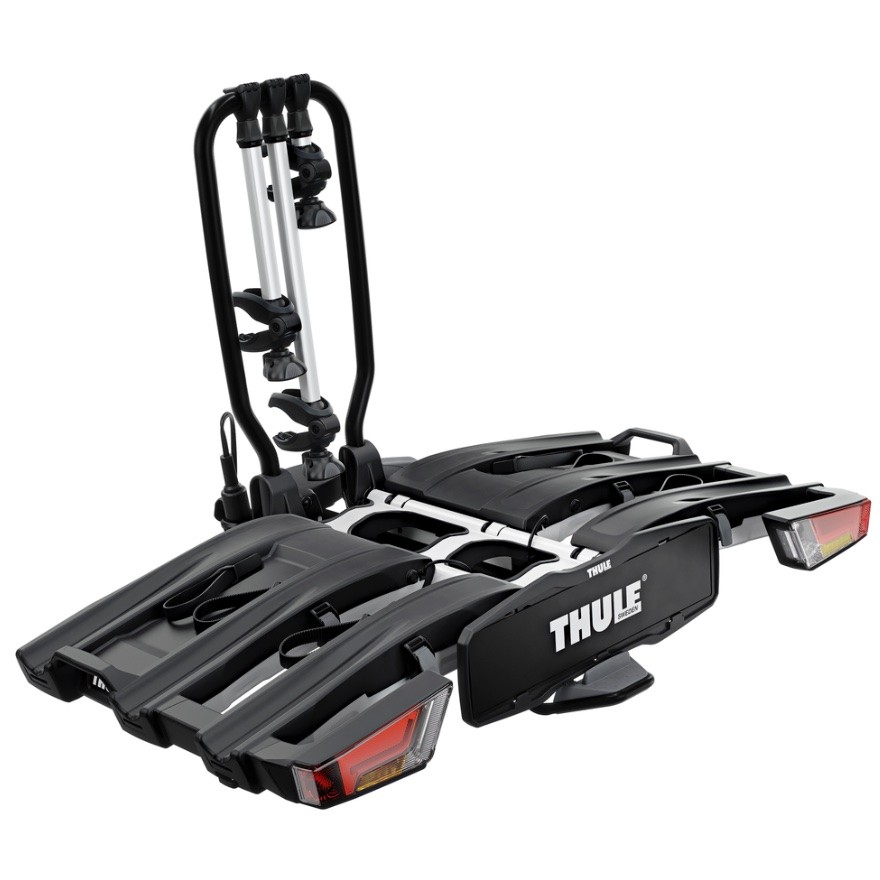

Thule 934 EasyFold XT

The Thule 934 EasyFold XT is the ideal fully foldable 3 bike carrier that attaches to a car's tow ball. It is really simple to use and operate. The folding mechanism makes it much easier to fit onto a tow bar because you can simply lift it in position folded and then unfold when you tighten it. There are even two integrated transport wheels and an ergonomic handle for ease of manoeuvrability.  When mounted on the tow ball, access to the boot compartment  is virtually unobstructed since the tilt action is simple to use and leaves plenty of room to stand between the carrier and vehicle.

Electric Bikes

The Thule 934 EasyFold is an ideal bike carrier for carrying E-bikes, as well as normal bikes, thanks to its generous loading weight capability of 30 kg per bike. The 9334 EasyFold loading ramp is a very handy addition for electric bikes and other heavy bikes.  The bike is effortlessly rolled into position on the carrier with no heavy lifting needed  The ramp can then be neatly folded and stored away under the tilt platform.

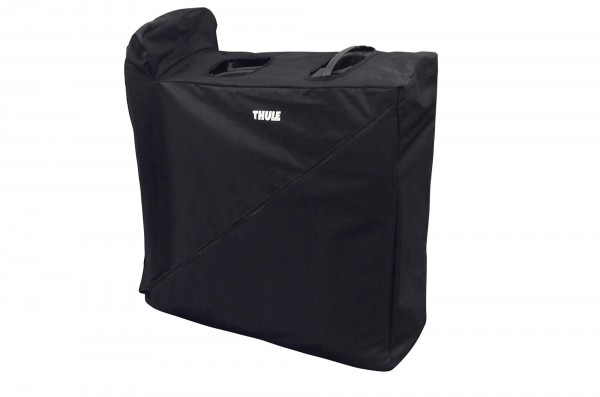

A helpful tip from roofracks.co.uk: "Since it is so convenient and simple to remove the EasyFold, the 9344 carrying case is an invaluable accessory since it allows you to stow the carrier, in seconds, without getting your clothes or car boot soiled from the inevitable road dirt"

Accessories & videos

> >   view accessories for Thule 934 EasyFold XT 3

  view the Thule 934 EasyFold XT 3 cycle carrier video on YouTube

Features

• Fully foldable for convenient mounting, handling and storage
• High load capacity enabling transport of e-bikes and heavy mountain bikes
• Lockable Thule AcuTight torque limiter knobs that "click" when optimal torque is reached
• Distance between wheel holders facilitates bikes with large wheel bases
• Extra-long wheel straps with pump buckles enabling transport of fat bikes
• Easy access to car boot even with bikes mounted, thanks to smart foot pedal tilt
• Simple mounting of the bike rack on to tow ball thanks to the tow bar coupling's initial stability
• Foot operated tilt function
• Ergonomic carrying of the bike rack thanks to the integrated carrying handle
• Pre-assembled, no tools required
• Locks bikes to the bike rack and the rack to the tow bar (matching locks included)
• Integrated transport wheels for easy manoeuvrability
• Carbon frame compatible with accessory Carbon Frame Protector

Technical

• Dimensions: 123 x 83 x 86 cm (assembled) - 31 x 83 x 86 cm (folded)
• Fits bike frame dimensions: 22 to 80 mm
• Max tyre width: Up to 3 inches (increase to 4.7 inches with Thule XXL Wheel Straps required)
• Maximum wheel diameter: 29 inches
• Maximum wheelbase: 1300 mm
• Distance between bikes: 22 / 19 cm
• Carbon frame compatible: Requires Thule Carbon Frame Protector
• Rear lights:
• Lock rack to vehicle:
• Tilt function (with bikes):
• Detachable frame holders:
• One Key System compatible:
• Maximum number of bikes: 3
• Maximum bike weight: 30 kg
• Load capacity: 60 kg
• 13-pin electrics plug
• Weight: 23.1 kg
• Colour: Black / Aluminium
• Thule model number: 934300

  download Thule 934 EasyFold XT 3 cycle carrier user manual
